EFK Stack 구성하기 2 (Kinesis Firehose 추가)

지난 글에 이어 EFK Stack에 FluentBit과 OpenSearch 사이에 버퍼 역할을 하는 Kinesis Firehose를 추가하여 구성하고자 합니다.

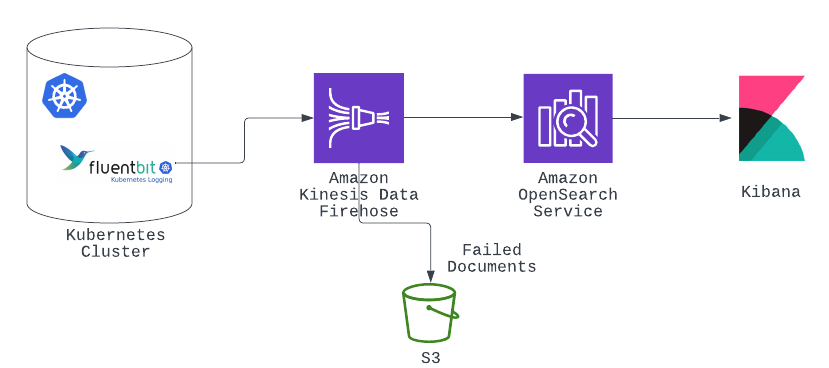

[목표]

[기본 환경]

• Internet Outbound 통신이 가능한 Kubernetes Cluster
• EFK용 IAM User
• Amazon OpenSearch

[추가 배포 순서]

1. IAM Role 수정 [Terraform]

resource "aws_iam_role" "role-efk-test" {
  name = "role-efk-test"

  assume_role_policy = <<EOF
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::${var.aws-account-id}:user/efk-test",
                "Service": [
                   "firehose.amazonaws.com"
                ]
            },
            "Action": "sts:AssumeRole"
        }
    ]
}
EOF
}

resource "aws_iam_role_policy_attachment" "role-efk-test-policya-1" {
  role      = aws_iam_role.role-efk-test.name
  policy_arn = "arn:aws:iam::aws:policy/AmazonOpenSearchServiceFullAccess"
}

resource "aws_iam_role_policy_attachment" "role-efk-test-policya-2" {
  role      = aws_iam_role.role-efk-test.name
  policy_arn = "arn:aws:iam::aws:policy/AmazonS3FullAccess"
}

resource "aws_iam_role_policy_attachment" "role-efk-test-policya-3" {
  role      = aws_iam_role.role-efk-test.name
  policy_arn = "arn:aws:iam::aws:policy/AmazonKinesisFullAccess"
}

resource "aws_iam_role_policy_attachment" "role-efk-test-policya-4" {
  role      = aws_iam_role.role-efk-test.name
  policy_arn = "arn:aws:iam::aws:policy/AmazonKinesisFirehoseFullAccess"
}



2. Kinesis Firehose 생성 [Terraform]

resource "aws_kinesis_firehose_delivery_stream" "kinesis-firehose-test" {
  name        = "kinesis-firehose-test-stream"
  destination = "elasticsearch"

  s3_configuration {
    role_arn           = aws_iam_role.role-efk-test.arn
    bucket_arn         = aws_s3_bucket.s3-kinesis-firehose-test.arn
    buffer_size        = 10
    buffer_interval    = 400
    compression_format = "GZIP"
  }

  elasticsearch_configuration {
    domain_arn = aws_elasticsearch_domain.log-opensearch.arn
    role_arn   = aws_iam_role.role-efk-test.arn

    index_name = "kubernetes-log"  ## 원하는 Index
    index_rotation_period = "OneDay"

    processing_configuration {
      enabled = "false"
    }
    s3_backup_mode     = "FailedDocumentsOnly"
  }

  depends_on = [
   aws_iam_role.role-efk-test,
   aws_s3_bucket.s3-kinesis-firehose-test
  ]
}



3. S3 생성 [Terraform]

resource "aws_s3_bucket" "s3-kinesis-firehose-test" {
  bucket = "s3-kinesis-firehose-xxx-test"
  acl    = "private"
}



4. fluentbit configmap 수정 및 배포

[fluent-bit-configmap.yaml]

apiVersion: v1
kind: ConfigMap
metadata:
  name: fluent-bit-config
  namespace: logging
  labels:
    k8s-app: fluent-bit
data:
  # Configuration files: server, input, filters and output
  # ======================================================
  fluent-bit.conf: |
    [SERVICE]
        Flush         1
        Log_Level     info
        Daemon        off
        Parsers_File  parsers.conf
        HTTP_Server   On
        HTTP_Listen   0.0.0.0
        HTTP_Port     2020

    @INCLUDE input-kubernetes.conf
    @INCLUDE filter-kubernetes.conf
    @INCLUDE output-kinesisfirehose.conf

  input-kubernetes.conf: |
    [INPUT]
        Name              tail
        Tag               kube.*
        Path              /var/log/containers/*.log
        Parser            docker
        DB                /var/log/flb_kube.db
        Mem_Buf_Limit     5MB
        Skip_Long_Lines   On
        Refresh_Interval  10

  filter-kubernetes.conf: |
    [FILTER]
        Name                kubernetes
        Match               kube.*
        Kube_URL            https://kubernetes.default.svc:443
        Kube_CA_File        /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
        Kube_Token_File     /var/run/secrets/kubernetes.io/serviceaccount/token
        Kube_Tag_Prefix     kube.var.log.containers.
        Merge_Log           On
        Merge_Log_Key       log_processed
        K8S-Logging.Parser  On
        K8S-Logging.Exclude Off

  output-kinesisfirehose.conf: |
    [OUTPUT]
        Name                 kinesis_firehose
        Match                *
        region               ap-northeast-2
        delivery_stream      kinesis-firehose-test-stream
        role_arn             arn:aws:iam::{aws-account-id}:role/role-efk-test

  parsers.conf: |
    [PARSER]
        Name   apache
        Format regex
        Regex  ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
        Time_Key time
        Time_Format %d/%b/%Y:%H:%M:%S %z

    [PARSER]
        Name   apache2
        Format regex
        Regex  ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^ ]*) +\S*)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
        Time_Key time
        Time_Format %d/%b/%Y:%H:%M:%S %z

    [PARSER]
        Name   apache_error
        Format regex
        Regex  ^\[[^ ]* (?<time>[^\]]*)\] \[(?<level>[^\]]*)\](?: \[pid (?<pid>[^\]]*)\])?( \[client (?<client>[^\]]*)\])? (?<message>.*)$

    [PARSER]
        Name   nginx
        Format regex
        Regex ^(?<remote>[^ ]*) (?<host>[^ ]*) (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")?$
        Time_Key time
        Time_Format %d/%b/%Y:%H:%M:%S %z

    [PARSER]
        Name   json
        Format json
        Time_Key time
        Time_Format %d/%b/%Y:%H:%M:%S %z

    [PARSER]
        Name        docker
        Format      json
        Time_Key    time
        Time_Format %Y-%m-%dT%H:%M:%S.%L
        Time_Keep   On

    [PARSER]
        # http://rubular.com/r/tjUt3Awgg4
        Name cri
        Format regex
        Regex ^(?<time>[^ ]+) (?<stream>stdout|stderr) (?<logtag>[^ ]*) (?<message>.*)$
        Time_Key    time
        Time_Format %Y-%m-%dT%H:%M:%S.%L%z

    [PARSER]
        Name        syslog
        Format      regex
        Regex       ^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<host>[^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$
        Time_Key    time
        Time_Format %b %d %H:%M:%S



5. fluentbit ds image 버전 확인 및 배포

(Kinesis firehose plugin은 1.7 이후 버전부터 사용 가능한 것으로 보임)

[fluent-bit-ds.yaml]

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: fluent-bit
  namespace: logging
  labels:
    k8s-app: fluent-bit-logging
    version: v1
    kubernetes.io/cluster-service: "true"
spec:
  selector:
    matchLabels:
      k8s-app: fluent-bit-logging
  template:
    metadata:
      labels:
        k8s-app: fluent-bit-logging
        version: v1
        kubernetes.io/cluster-service: "true"
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "2020"
        prometheus.io/path: /api/v1/metrics/prometheus
    spec:
      containers:
      - name: fluent-bit
        image: fluent/fluent-bit:1.7
        imagePullPolicy: Always
        ports:
          - containerPort: 2020
        env:
        - name: AWS_ACCESS_KEY_ID
          valueFrom:
            secretKeyRef:
              name: secret-aws-credentials
              key: AWS_ACCESS_KEY_ID
        - name: AWS_SECRET_ACCESS_KEY
          valueFrom:
            secretKeyRef:
              name: secret-aws-credentials
              key: AWS_SECRET_ACCESS_KEY
        volumeMounts:
        - name: varlog
          mountPath: /var/log
        - name: varlibdockercontainers
          mountPath: /var/lib/docker/containers
          readOnly: true
        - name: fluent-bit-config
          mountPath: /fluent-bit/etc/
      terminationGracePeriodSeconds: 10
      volumes:
      - name: varlog
        hostPath:
          path: /var/log
      - name: varlibdockercontainers
        hostPath:
          path: /var/lib/docker/containers
      - name: fluent-bit-config
        configMap:
          name: fluent-bit-config
      serviceAccountName: fluent-bit
      tolerations:
      - key: node-role.kubernetes.io/master
        operator: Exists
        effect: NoSchedule
      - operator: "Exists"
        effect: "NoExecute"
      - operator: "Exists"
        effect: "NoSchedule"



[참고자료]

EKS 환경에서의 EFK 도입기

Amazon Kinesis Data Streams - Fluent Bit: Official Manual
